IPV6windows服务器使用Squid访问IPV4网页

项目介绍

• IPV6的介绍

• Squid的介绍

Squid是一款开源的代理服务器软件，遵循GNU通用公共许可证（GPL）。它支持Web代理缓存，可以缓存远程网站的内容，从而提高内部网络访问外部资源的速度

准备工具

需要的工具	推荐区
纯IPV6服务器(不含v4)	推荐商家:腾讯云
IPV4+IPV6都有的服务器（装CentOS系统）	推荐商家:腾讯云
SSH工具	手机下载:JuiceSSH电脑下载:FinalShell-等等的工具
脚本	良生网 edge浏览器
智商	自带

部署Squid

• 咱们打开FinalShell 进入IPV4+IPV6都有的服务器 然后按以下命令输入一次回车一次

 sudo yum update -y

#更新系统软件包

sudo yum install squid -y

#安装Squid

sudo systemctl start squid

sudo systemctl enable squid

启动Squid并设置开机自启

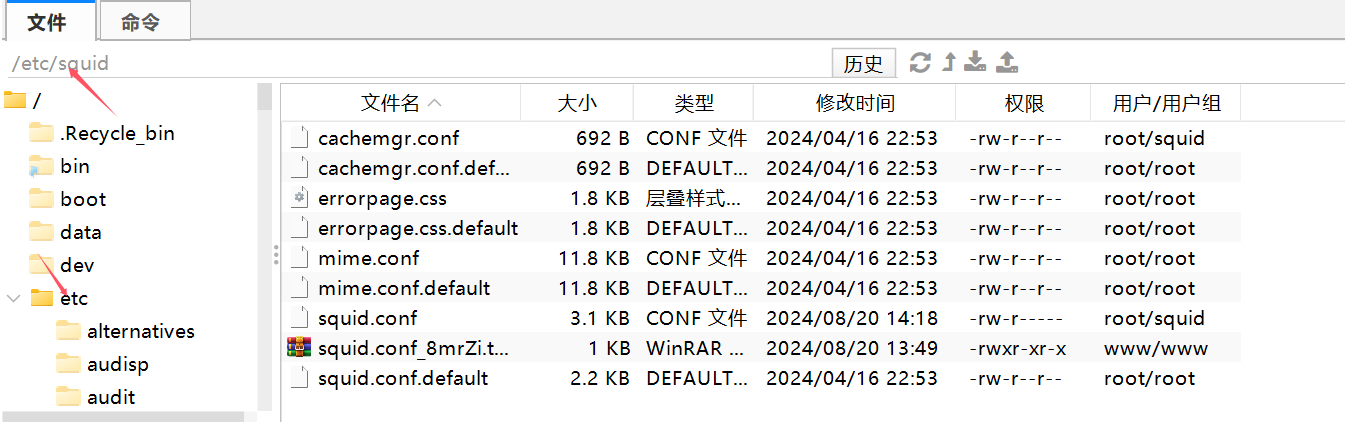

• 然后等待安装完毕进入以下目录 编辑以下代码有注释自己改尤其是：acl allowed_ip1 src 输入你的IPV6 这一行代码必须改！！！！！！！！！！！！！！！！！！！！

• 以下文件可以直接复制粘贴然后按要求改

#
# Recommended minimum configuration:
#

# Example rule allowing access from your local networks.
# Adapt to list your (internal) IP networks from where browsing should be allowed
acl localnet src 10.0.0.0/8    # RFC1918 possible internal network
acl localnet src 172.16.0.0/12    # RFC1918 possible internal network
acl localnet src 192.168.0.0/16    # RFC1918 possible internal network
acl localnet src fc00::/7       # RFC 4193 local private network range
acl localnet src fe80::/10      # RFC 4291 link-local (directly plugged) machines

# New rules to allow specific IPv6 addresses
acl allowed_ip1 src 输入你的IPV6

acl SSL_ports port 443
acl Safe_ports port 80        # http
acl Safe_ports port 21        # ftp
acl Safe_ports port 443        # https
acl Safe_ports port 210        # wais
acl Safe_ports port 1025-65535    # unregistered ports
acl Safe_ports port 280        # http-mgmt
acl Safe_ports port 488        # gss-http
acl Safe_ports port 591        # filemaker
acl Safe_ports port 777        # multiling http
acl CONNECT method CONNECT

#
# Recommended minimum Access Permission configuration:
#
# Deny requests to certain unsafe ports
http_access deny !Safe_ports

# Deny CONNECT to other than secure SSL ports
http_access deny CONNECT !SSL_ports

# Only allow cachemgr access from localhost
http_access allow localhost manager
http_access deny manager

# We strongly recommend the following be uncommented to protect innocent
# web applications running on the proxy server who think the only
# one who can access services on "localhost" is a local user
#http_access deny to_localhost

#
# INSERT YOUR OWN RULE(S) HERE TO ALLOW ACCESS FROM YOUR CLIENTS
#

# Example rule allowing access from your local networks.
# Adapt localnet in the ACL section to list your (internal) IP networks
# from where browsing should be allowed
http_access allow localnet
http_access allow localhost

# Allow access from the specific IPv6 addresses
http_access allow allowed_ip1

# And finally deny all other access to this proxy
http_access deny all

# Squid normally listens to port 3128
http_port 3128

# Uncomment and adjust the following to add a disk cache directory.
#cache_dir ufs /var/spool/squid 100 16 256

# Leave coredumps in the first cache dir
coredump_dir /var/spool/squid

#
# Add any of your own refresh_pattern entries above these.
#
refresh_pattern ^ftp:        1440    20%    10080
refresh_pattern -i (/cgi-bin/|\?) 0    0%    0
refresh_pattern .        0    20%    4320

• 如果你ipv6服务器不止一个ipv6那就按照以下来

第14行 acl allowed_ip1 src 你的ipv6
      acl allowed_ip2 src 你的ipv6
      以此推类
      acl allowed_ip按照123456789 src 你的ipv6
第55行左右
      http_access allow allowed_ip1
      http_access allow allowed_ip2
      以此推类
      http_access allow allowed_ip按照123456789

• 改完后保存 保存 保存 然后输入以下指令

sudo systemctl restart squid

• 检查状态

sudo systemctl status squid

看到Active: active (running) 就成功了

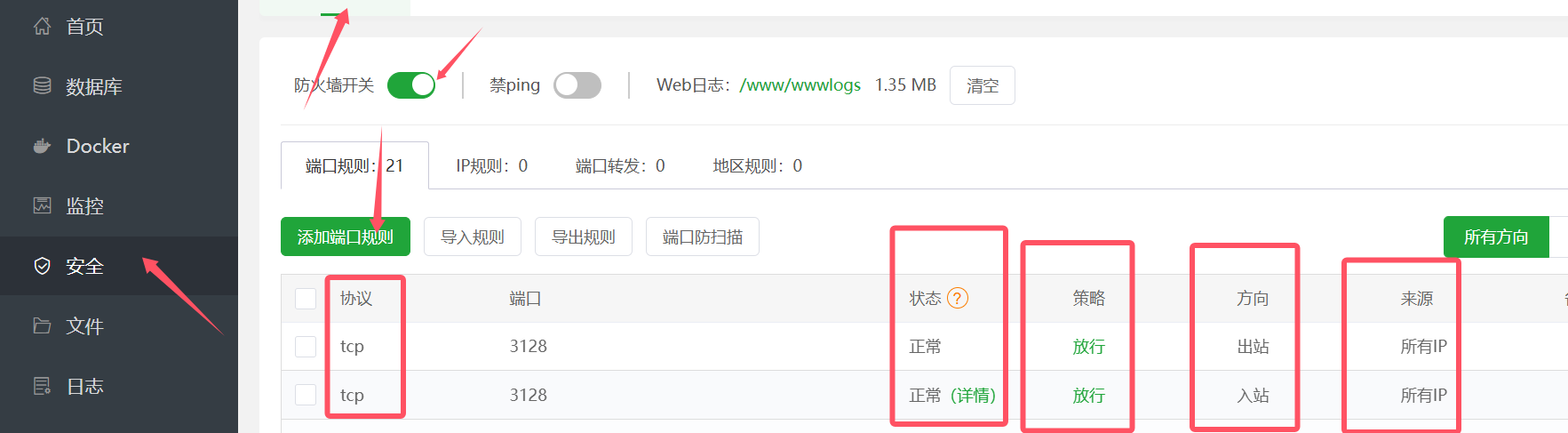

tcp 的出和入方向放3128端口

SSH命令放是

sudo firewall-cmd --permanent --add-port=3128/tcp
sudo firewall-cmd --reload

不知道端口是不是通的去 网站端口扫描 输入ip和端口点击开始扫描 显示开启就可以了如果关闭哪里买的服务器问哪里

• 查看Squid的访问日志和错误日志：

访问日志：/var/log/squid/access.log

错误日志：/var/log/squid/cache.log

• Squid部署成功然后我们需要复制的东西

[你的IPV6]和端口
ipv6外面一定要用[]包裹如
[2a01:4f8:c2c:123f::1]

配置windows

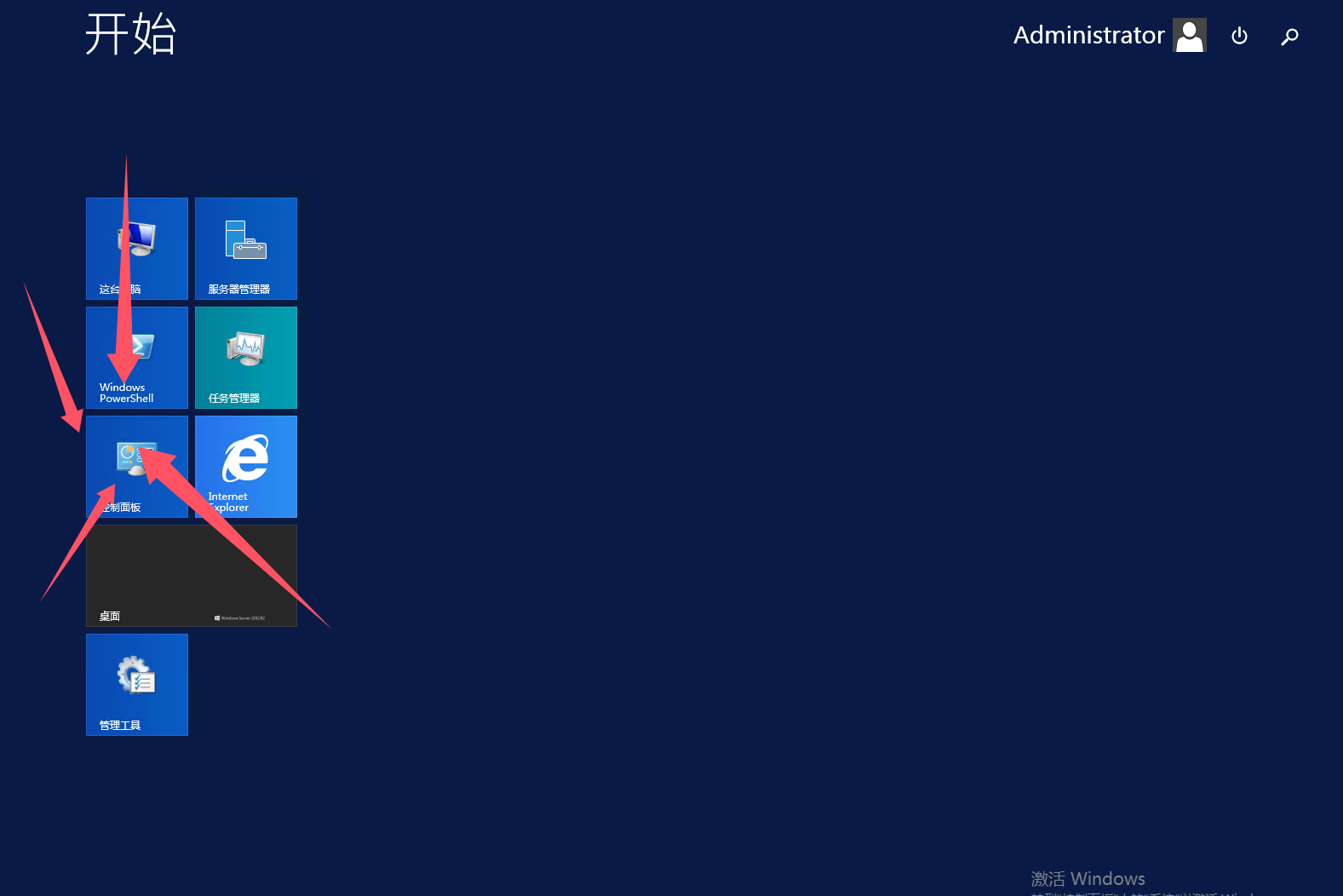

• 用FinalShell打开你的IPV6windows

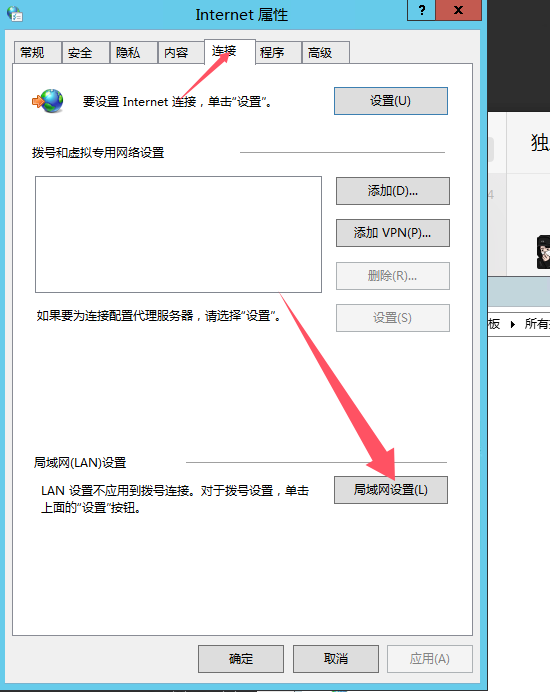

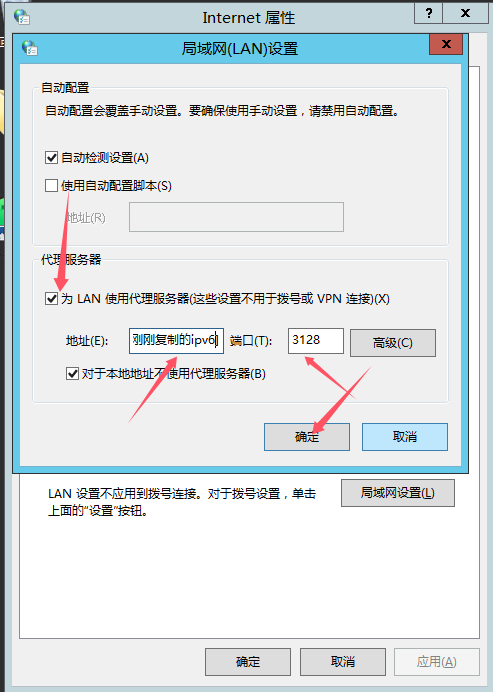

一直点确定和应用即可

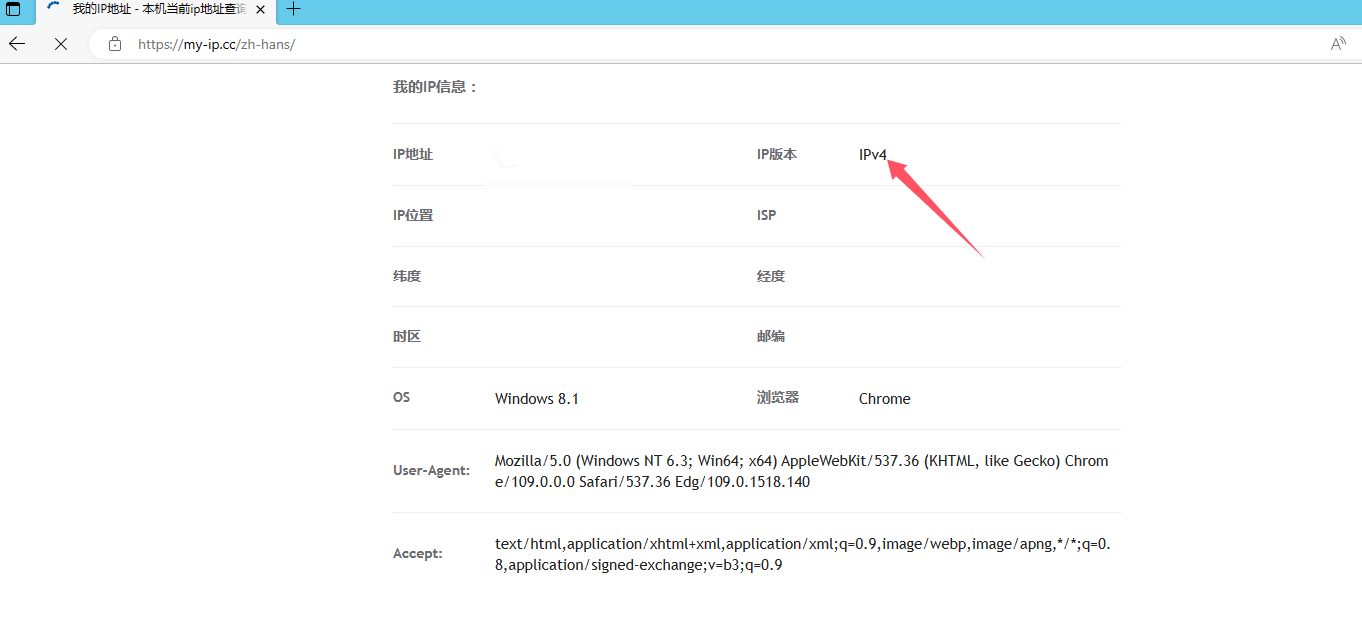

然后去浏览器输入

https://my-ip.cc/zh-hans/

项目结束

在结束这段教程之际，希望您已经成功地在Windows服务器上配置了Squid代理，实现了IPv6网络访问IPv4网页的功能。请您在实际应用中不断探索和优化，以充分发挥Squid代理的优势。在此，祝您网络顺畅，工作顺利，生活愉快！如有任何疑问，欢迎随时评论。再次感谢您对良生网的支持！
